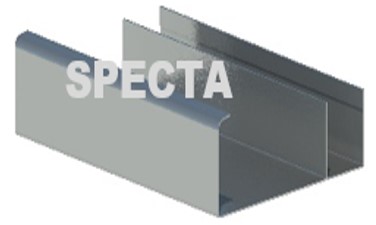

Specta - CH Studs
Product information
Application: SD CH Studs are part of the SD shaft wall profiles.
Type Dimensions (MM)
- SD CH Stud - 65 : 38 X 65 X 38 X 6 X 3000
- SD CH Stud - 100 : 38 X 100 X 38 X 6 X 3000
- SD CH Stud - 150 : 38 X 150 X 38 X 6 X 3000
Standard Thickness (MM) : 0.60
Special Order Thickness (MM) : 0.90
Packing : 10 Pc
Pallet : 500 Pc

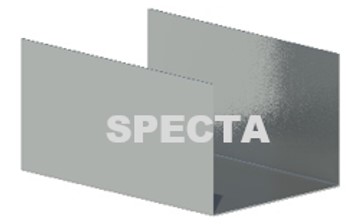

Specta - E Studs
Product information
Application : SD E Studs are part of the SD shaft wall profiles.
Type Dimensions (MM)
- SD E Stud - 65 : 25 X 65 X 19 X 6 X 3000
- SD E Stud - 100 : 25 X 100 X 19 X 6 X 3000
- SD E Stud - 150 : 25 X 150 X 19 X 6 X 3000
Standard Thickness (MM) : 0.60
Special Order Thickness (MM) : 0.90
Packing : 10 Pc
Pallet : 500 Pc

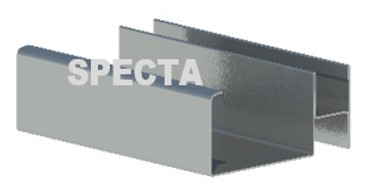

Specta - J Studs
Product information
Application : SD J Studs are part of the SD shaft wall profiles.
Type Dimensions (MM)
- SD J Stud - 65 : 25 X 65 X 57 X 3000
- SD J Stud - 100 : 25 X 100 X 57 X 3000
- SD J Stud - 150 : 25 X 150 X 57 X 3000
Standard Thickness (MM) : 0.60
Special Order Thickness (MM) : 0.90
Packing : 10 Pc
Pallet : 500 Pc

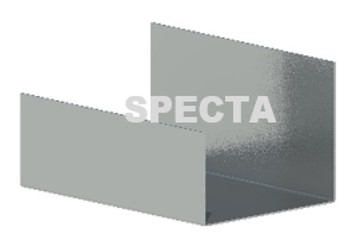

Specta - Deflection Tracks
Product information
Application : SD Deflection Tracks are part of the SD shaft wall profiles.
Type Dimensions (MM)
- SD Deflection Track - 65 : 50 X 65 X 75 X 3000
- SD Deflection Track - 100 : 50 X 100 X 75 X 3000
- SD Deflection Track - 150 : 50 X 150 X 75 X 3000
Standard Thickness (MM) : 0.60
Special Order Thickness (MM) : 0.90
Packing : 10 Pc
Pallet : 500 Pc
Specta - Jumbo Tracks
Product information
Application : SD Jumbo Tracks are part of the SD shaft wall profiles.
Type Dimensions (MM)
- SD Jumbo Track- 65 : 75 X 65 X 75 X 3000
- SD Jumbo Track- 100 : 75 X 100 X 75 X 3000
- SD Jumbo Track- 150 : 75 X 150 X 75 X 3000
Standard Thickness (MM) : 0.60
Special Order Thickness (MM) : 0.90
Packing : 10 Pc
Pallet : 500 Pc
